IAD100-4S
+
  • IAD100-4S
  • IAD100-4S

IAD100-4S

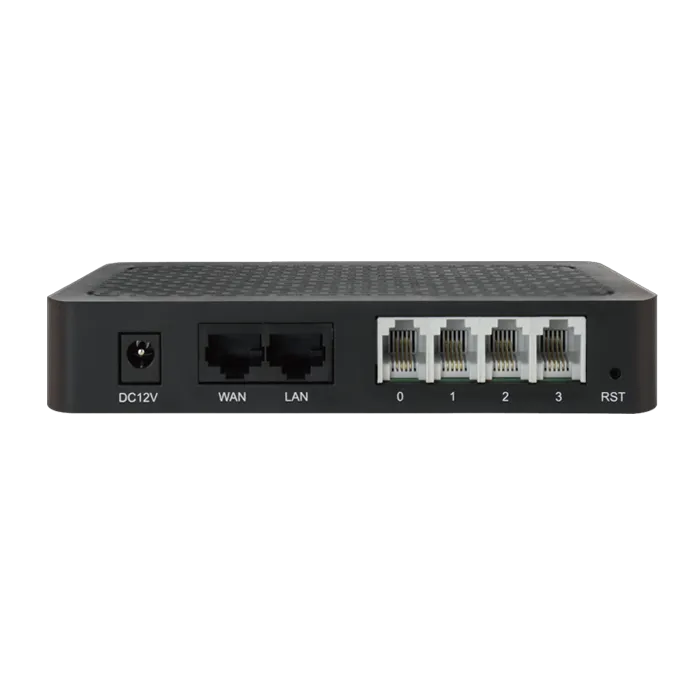

The Becke IAD100-4S Analog VoIP Gateway features 4 FXS ports, linking analog phones/faxes to VoIP/IP-PBX. It supports multiple voice codecs, T.38 fax, TLS/SRTP encryption, dual Ethernet ports, IPv4/IPv6, and web-based management, ideal for SOHOs, small businesses and residences.

Category:

Analog Gateway

sales1@becke.cc

Hotline:+864008 628 588

Get a quote
related products
  • Product details
  • Specifications
  • Download

  • This Becke IAD100-4S Analog VoIP Gateway is a high-performance, multi-functional communication access device designed to bridge the gap between traditional analog telephony and modern IP-based voice networks. Equipped with 4 FXS ports, it allows small businesses, SOHO (Small Office/Home Office) users, and residential customers to connect up to four standard analog telephones or fax machines to a Voice over IP (VoIP) service provider or an on-premise IP-PBX.
    By utilizing the Becke IAD100-4S, organizations can preserve their existing investment in analog hardware while migrating to a modern, cost-effective digital infrastructure.

    Enterprise and Industry Communications

        Technical Excellence and Voice Quality

    The core mission of the Becke IAD100-4S is to deliver a voice experience that is indistinguishable from a traditional landline. To achieve this, the device is powered by a robust hardware architecture and advanced digital signal processing.

    1. Superior Audio Processing

    The gateway supports a wide array of industry-standard voice codecs, including G.711A/U, G.723.1, G.729A/B, and iLBC. These codecs ensure that voice data is compressed efficiently for network transmission without sacrificing clarity. To combat the common issues of internet-based calling, the device features:

    • G.168 Echo Cancellation: Eliminates feedback and echo for professional-sounding calls.
    • Dynamic Jitter Buffer: Automatically adjusts to network instability to prevent voice "stuttering."
    • VAD & CNG: Voice Activity Detection and Comfort Noise Generation save bandwidth by only transmitting data when someone is speaking, while keeping the background sound natural.

    2. Reliable Fax Support

    For many industries, such as law, healthcare, and real estate, physical faxing remains a daily necessity. The Becke IAD100-4S provides rock-solid support for T.38 Fax over IP, allowing fax machines to send documents over the internet with high success rates. It also supports T.30 Pass-through for legacy compatibility.

        Intelligent Features and Security

    Beyond simple signal conversion, this gateway acts as a sophisticated telephony hub. It brings the advanced features of a digital PBX to your old-fashioned analog handsets.

    Comprehensive Call Management

    Users can enjoy a full suite of supplementary services, including:

    • Call Handling: Support for call waiting, call transfer (blind and attended), and three-way conferencing.
    • Caller ID: Compatible with global standards (Bellcore, ETSI, DTMF), ensuring you always see who is calling.
    • Flexible Dial Plans: Customizable digit maps allow the gateway to automatically route calls or add prefixes based on your location.
    • Do Not Disturb (DND): Easily manage your availability at the device level.

    Enterprise-Grade Security

    Security is a primary concern for any internet-connected device. The Becke IAD100-4S protects your conversations with high-level encryption protocols:

    • TLS (Transport Layer Security): Encrypts the signaling to prevent unauthorized tracking of call metadata.

    • SRTP (Secure Real-time Transport Protocol): Encrypts the actual voice stream, ensuring that your private conversations stay private.

    High Gateway Security

        Hardware and Network Flexibility

    The physical design of the Becke IAD100-4S is both compact and functional. It features a sleek, silent, fanless chassis that fits perfectly on a desktop or can be wall-mounted in a wiring closet.

    • Dual Ethernet Ports: The device includes one WAN port and one LAN port (10/100 Mbps). This allows the gateway to be placed in-line between a router and a PC, eliminating the need for extra network cabling.
    • IP Compatibility: It fully supports both IPv4 and IPv6 stacks, ensuring the device remains future-proof as global network standards evolve.
    • Power Efficiency: Operating on a low-voltage 12V DC power supply, it is designed for 24/7 reliability with minimal energy consumption.

        Management and Ease of Use

    Whether you are an individual user or a service provider managing thousands of units, the Becke IAD100-4S offers intuitive management tools.

    1. Web-Based GUI: A user-friendly, browser-based interface allows for quick configuration of SIP accounts, network settings, and audio parameters.
    2. Centralized Management: For large-scale deployments, the gateway supports TR-069 and SNMP. This allows IT administrators to perform remote firmware upgrades, change configurations, and monitor device status without site visits.

    3. Advanced Diagnostics: Built-in system logs and packet capture capabilities make troubleshooting fast and efficient.

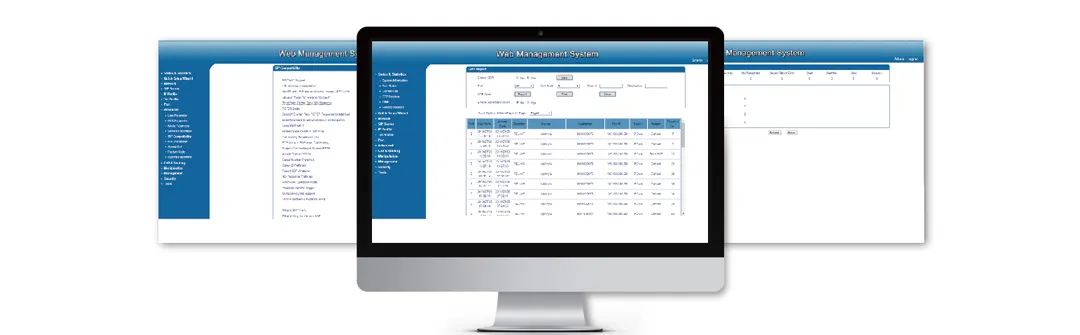

    Easy Maintenance and Management

        Practical Application Scenarios

    The versatility of the Becke IAD100-4S makes it a go-to solution for several use cases:

    • SOHO & Small Business: Link existing office phones to a low-cost VoIP service to slash monthly phone bills.
    • Remote Offices: Connect a branch office's analog phones to the main corporate IP-PBX, enabling free extension-to-extension dialing between locations.
    • Residential VoIP: Replace expensive traditional PSTN lines with high-speed internet telephony while keeping the same home handsets.

    The Becke IAD100-4S is a reliable, secure, and cost-effective gateway that empowers users to embrace the future of communication without letting go of the past.

  • Core Interfaces

    • Voice interfaces: 4×FXS (RJ11)
    • Network interfaces: 1×LAN, 1×WAN (10/100Mbps, RJ45 for both)
    • Serial port: None

    Protocol Support

    • VoIP protocols: SIP v2.0 (UDP/TCP), TR069, TR181 and other mainstream RFC series protocols
    • Network management protocols: SNMP v1/v2/v3, TR069
    • Network protocols: IPv4/IPv6 dual stack, PPPoE; supports DNS/NATPR query, SIP trunk creation

    Voice Processing

    • Codecs: G.711A/U, G.723.1, G.729A/B
    • Optimization features: 128ms echo cancellation, silence suppression, VAD, AGC, dynamic jitter buffer, etc.
    • Fax/Data: T.38/Pass-through fax, Modem/POS machine services
    • Signaling: DTMF (DiffServSignal/RFC2833/INBAND), Layer 3 QoS/DiffServ

    FXS Specifications

    Supports DTMF/pulse dialing (10/20 PPS) and DTMF/FSK caller ID; maximum wiring length 800 meters; compatible with multiple dial tone standards; supports reverse polarity signaling.

    Software & Business Functions

    • Basic functions: Automatic upgrade/configuration, Web/Telnet management, configuration backup and restore, HTTP firmware upgrade
    • Call functions: Early media/answer, ring group, three-way conference, hot line, call hold/wait/forward, blind transfer/consultation transfer, etc.
    • O&M functions: Call detail records, Syslog, Ping/Tracert, line diagnosis (GR909), cloud-based centralized maintenance, IVR voice maintenance
    • Business support: Voice, fax and POS machine services; interconnection of enterprise branches

    Environment & Power Supply

    • Power supply: 100-240VAC 50-60Hz, DC12V 1A adapter; power consumption 5W
    • Temperature & Humidity: Operating temperature 0℃~45℃, storage temperature -20℃~80℃; humidity 10%-90% (non-condensing)
    • Dimensions & Weight: 195×135×35mm, net weight 0.6kg

    Certifications & Compatibility

    • Certifications: CE, FCC
    • Compatibility: Certified by Elastix; compatible with Broadsoft, operator IMS/NGN softswitch platforms and call center systems; standard SIP protocol adapts to mainstream platforms
  • Name                Download Link
                    DatasheetDownload
                    User ManualDownload
