EX-BH621

The Becke EX-BH621 represents the pinnacle of specialized communication engineering, designed to bridge the gap between high-speed digital networking and the extreme physical demands of hazardous industrial environments. In sectors such as petrochemical refining, offshore drilling, underground mining, and heavy chemical processing, a standard communication device is not just inadequate—it is a potential ignition source. The EX-BH621 is engineered specifically to eliminate these risks while providing crystal-clear voice communication.

    1. Product Overview and Strategic Positioning

The Becke EX-BH621 is an Explosion-Proof SIP (VoIP) Telephone designed for use in atmospheres where flammable gases, vapors, or combustible dusts are present. Unlike traditional analog industrial phones, the EX-BH621 is built on a modern VoIP (Voice over Internet Protocol) architecture, allowing it to integrate directly into a facility's IP network.
This device serves as a critical safety component in an Integrated Communication System (ICS). It is positioned as a high-durability terminal that can withstand mechanical impact, chemical corrosion, and extreme temperatures, all while maintaining the strict "Ex" (Explosion Protection) standards required by international regulatory bodies.

    2. Technical Architecture: The SIP 2.0 Foundation

At the heart of the EX-BH621 is a sophisticated digital signal processor (DSP) that manages communication via the SIP 2.0 (RFC3261) protocol. This choice of technology provides several key advantages:

• Universal Compatibility: It can register as a standard extension on almost any modern IP-PBX or softswitch platform, including Cisco CUCM, Huawei eSpace, Asterisk, and Avaya.
• Audio Quality (HD Voice): Industrial environments are notoriously loud. The EX-BH621 supports wideband audio codecs such as G.722, providing "High Definition" voice quality that captures a broader frequency range than standard telephony. This is crucial for ensuring that commands are understood correctly in high-noise areas.
• Networking Flexibility: Supporting both Static IP and DHCP, the device can be easily deployed across large-scale industrial campuses. It also supports VLAN tagging (802.1Q/p) to prioritize voice traffic over data traffic, ensuring low latency and minimal jitter.

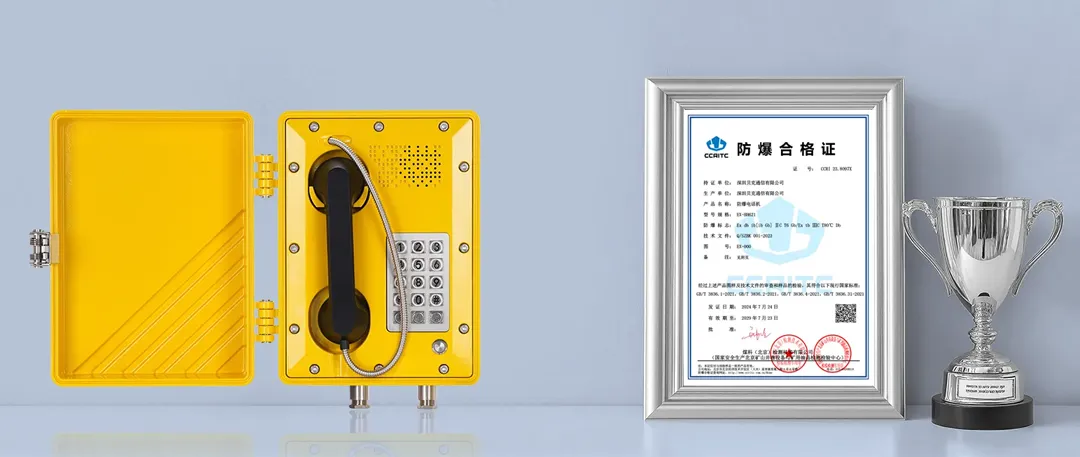

    3. Explosion Protection Philosophy and Certification

The "Ex" designation of the BH621 is not a mere marketing term; it refers to a specific engineering approach to safety. The device typically employs a combination of Flameproof (Ex d) and Intrinsic Safety (Ex ib) protection methods.

    Key Safety Ratings:

• Gas Protection: Often rated for Group IIC, the most volatile gas group which includes Hydrogen and Acetylene.
• Temperature Class: Usually rated T6, meaning the maximum surface temperature of the device will never exceed 85°C, even under a fault condition. This prevents the device from becoming an ignition source for gases with low auto-ignition temperatures.
• Zone Classification: Designed for use in Zone 1 and Zone 2 (Gas) as well as Zone 21 and Zone 22 (Dust).

The enclosure is designed to contain an internal explosion without allowing the flame to escape into the surrounding atmosphere, a feat achieved through precision-engineered "flame paths" in the housing joints.

    4. Hardware Durability and Industrial Design

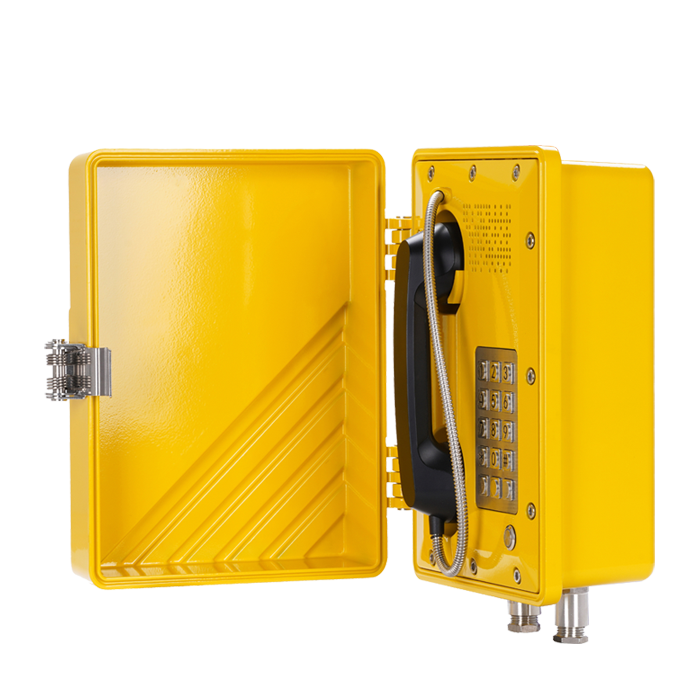

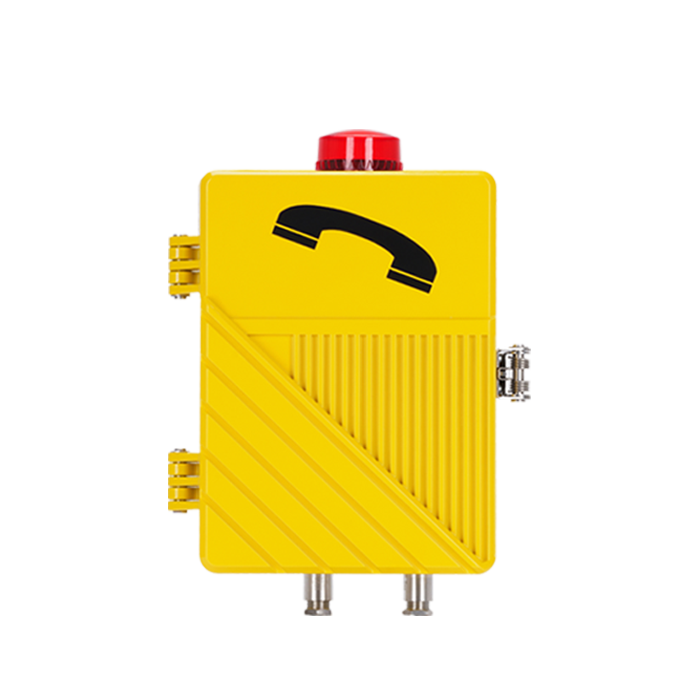

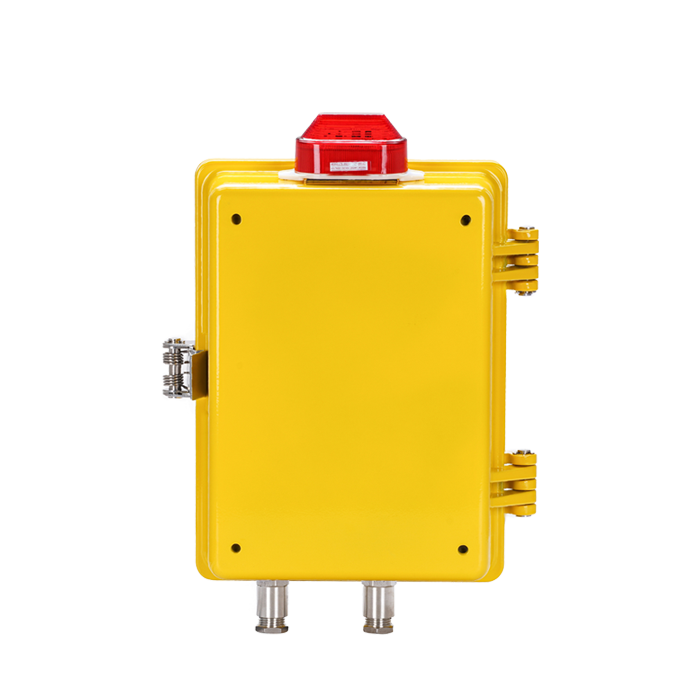

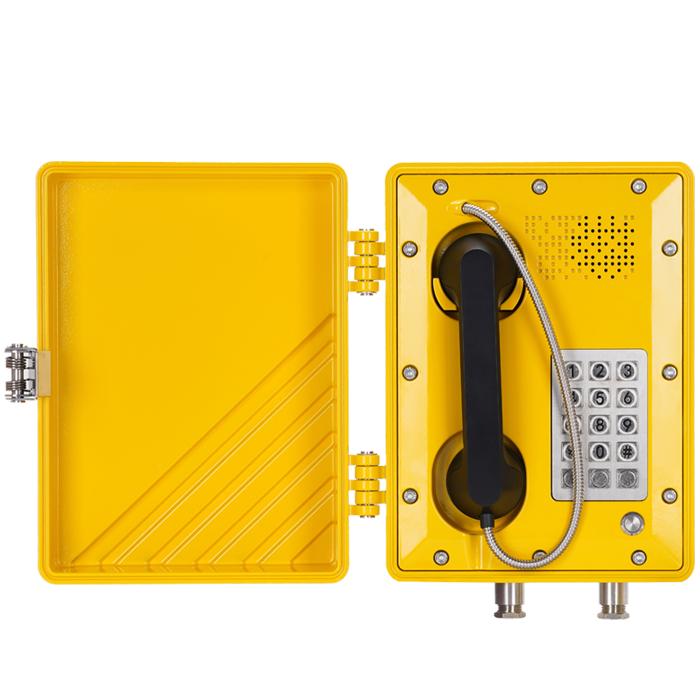

The physical construction of the EX-BH621 is optimized for longevity in "Atmospheres Explosibles."

    Housing and Enclosure

The body is constructed from die-cast aluminum alloy (ADC12). This material provides an ideal balance of weight, thermal conductivity, and mechanical strength. The surface is treated with an electrostatic powder coating, which offers:

• High Corrosion Resistance: Essential for salt-spray environments like offshore platforms.
• Anti-Static Properties: Preventing the buildup of static electricity that could cause a spark.

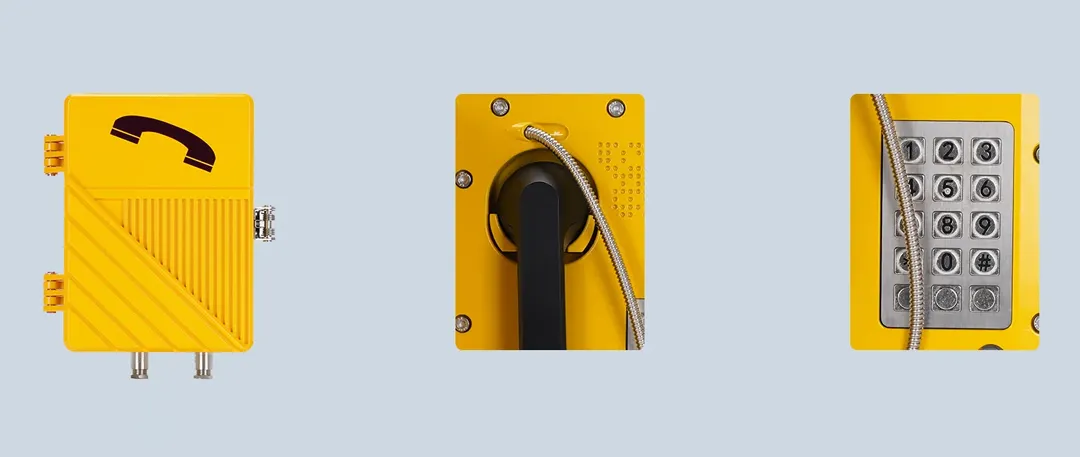

    The Handset and Armored Cord

The handset is made from high-strength molded plastic, but the critical component is the Stainless Steel Armored Cord. With a pull strength exceeding 200kg, it is virtually impossible to vandalize or accidentally sever, ensuring the lifeline of communication remains intact during an emergency.

    Ingress Protection (IP Rating)

The device is rated IP66 or IP67. This means it is:

1. Dust-Tight: No ingress of dust at all.

2. Water-Resistant: Capable of withstanding powerful water jets or temporary immersion. This makes it suitable for outdoor use in tropical storms or for cleaning via high-pressure hoses in food processing or chemical plants.

    5. Advanced Operational Features

The EX-BH621 includes several "Smart Industrial" features that distinguish it from consumer-grade devices:

• Noise Cancellation: Utilizing dual-microphone technology or advanced DSP algorithms, the phone filters out background industrial hum (pumps, turbines, fans) to isolate the human voice.
• Speed Dial / Hotline: It can be programmed to automatically dial a control room or emergency center the moment the handset is lifted.
• Remote Management: Since it is an IP device, technicians can log in via a web browser to change settings, update firmware, or check the device's "health" status without entering the hazardous zone.
• PoE (Power over Ethernet): The device can be powered through the same network cable used for data, simplifying installation and reducing the need for separate explosion-proof power supplies.

    6. Industrial Application Scenarios

The versatility of the Becke EX-BH621 makes it a staple in several specific sectors:

    Oil & Gas Refineries

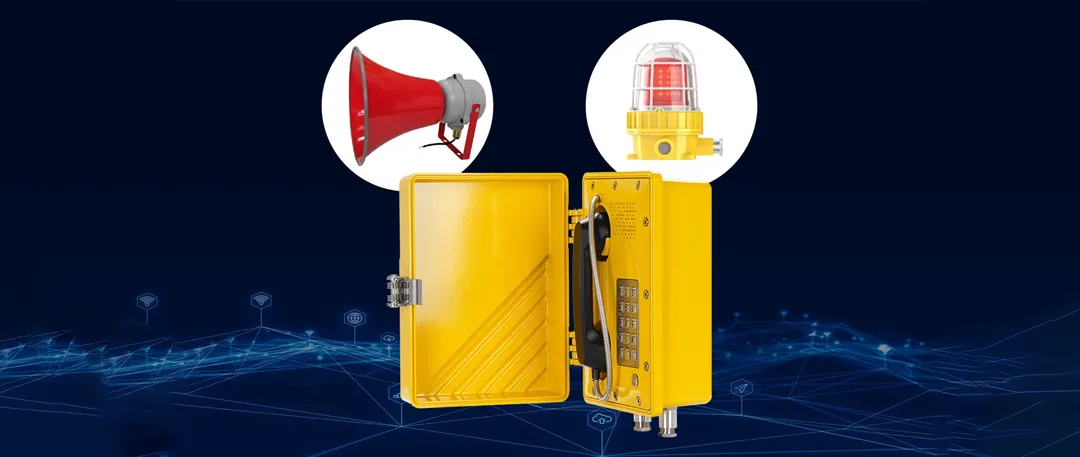

In a refinery, a single spark can lead to a catastrophe. The EX-BH621 is placed at critical points like pump stations, loading docks, and tank farms. Its ability to interface with paging systems allows it to act as an endpoint for site-wide emergency broadcasts.

    Underground Mining

Mining environments are harsh, damp, and often contain methane gas. The BH621’s IP67 rating protects against humidity and mud, while its explosion-proof certification ensures safety in the presence of coal dust or pockets of gas.

    Marine and Offshore

Saltwater is the enemy of electronics. The aluminum alloy and specialized coating of the EX-BH621 are designed specifically to resist the "pitting" corrosion common on oil rigs and chemical tankers.

    Infrastructure (Tunnels and Metros)

In long-distance railway or utility tunnels, communication is vital for maintenance and fire safety. The EX-BH621 provides a ruggedized intercom solution that can be daisy-chained over long distances via fiber optic converters or industrial switches.

    7. Installation and Maintenance Best Practices

To maintain the integrity of the explosion-proof rating, the EX-BH621 must be installed with specific hardware:

1. Ex-Cable Glands: The entry points for Ethernet or power cables must use certified explosion-proof glands to ensure the seal remains airtight.
2. Grounding: Proper earthing is mandatory to dissipate any potential electrical surges or static.
3. No Hot-Opening: The enclosure should never be opened while the circuit is live within a hazardous area.

    8. Conclusion

The Becke EX-BH621 is more than just a telephone; it is a specialized industrial tool. By combining the robustness of traditional explosion-proof engineering with the intelligence of modern SIP telephony, Becke provides a solution that enhances both operational efficiency and personnel safety. For any enterprise operating in high-risk environments, the EX-BH621 represents a reliable, future-proof investment in their communication infrastructure.
