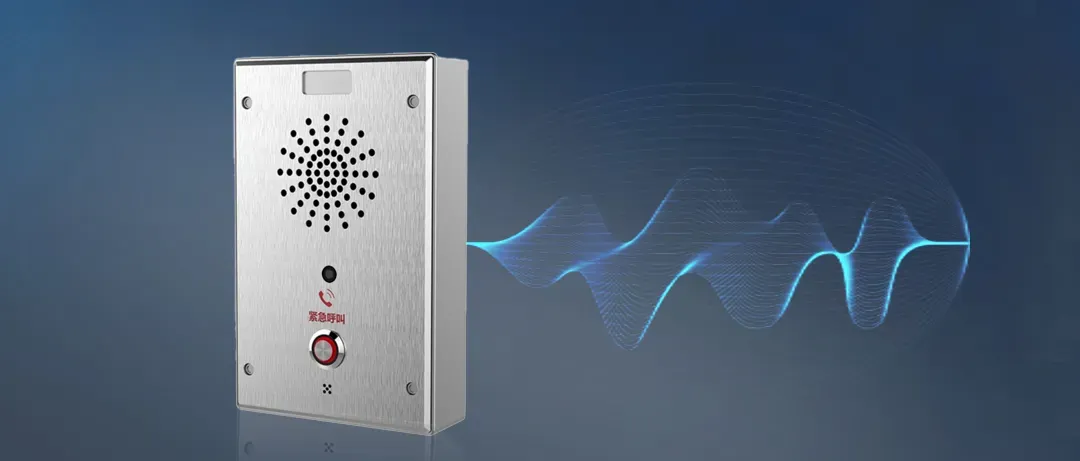

The Becke Bi11SV is a high-performance, enterprise-grade visual intercom device designed to deliver integrated audio-video communication, emergency response, and industrial-grade protection, catering to diverse communication needs across multiple scenarios. Powered by the Linux operating system, it ensures stable operation and broad expandability, supporting features like HTTP API, TR-069 platform access, and IPC linkage to meet customized business requirements.
Seamless Connectivity & Compatibility
At its core, the Bi11SV excels in flexible and reliable communication integration. It supports up to 2 SIP lines and 1 speed dial button (with red indicator light), ensuring seamless compatibility with IP-PBX systems and SIP-based cloud communication platforms for efficient internal and external communication.
Equipped with a 10/100Mbps RJ45 port, the device supports both IPv4 and IPv6 protocols, enabling stable network access. For power supply, it offers dual options: PoE (802.3af Class 3) and DC12V/1A input (via terminal interface), adapting to various deployment environments and reducing wiring constraints. Its expandable capabilities, including HTTP API, TR-069 platform access, and IPC linkage, allow for seamless integration with other systems, enhancing overall operational efficiency.
Superior Audio & Video Performance
The Bi11SV delivers exceptional audio and video quality tailored for clear, immersive communication.

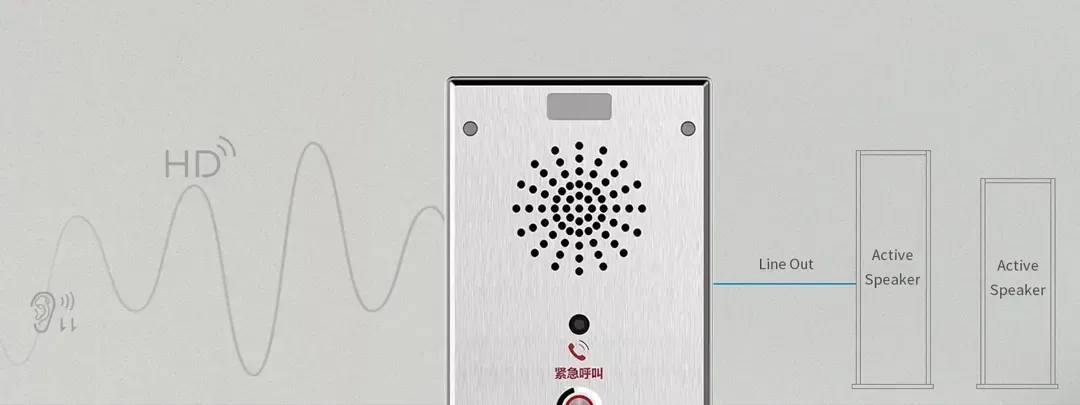

In terms of audio, it supports both narrowband (G.711, G.723.1, G.726, G.729A/B, iLBC) and wideband (G.722, Opus) codecs, enabling high-definition voice intercom. It is equipped with a 4Ω, 3W speaker, and features an audio line output interface (600 Ohm, adjustable volume up to 1.2Vpp) that can connect to active speakers for background music broadcasting or public announcements, expanding audio application scenarios.
For video, the device integrates a 2-megapixel built-in camera, supporting H.264 encoding and up to 1080P resolution. This ensures high-definition, smooth video feeds, enhancing the clarity and interactivity of visual communication.
Flexible Functionality & Customization
The Bi11SV offers practical, customizable features to adapt to diverse operational needs. It includes 1 configurable DSS (Direct Station Selection) key: by default, it functions as a one-touch paging button (enabling direct calls to specified IP/SIP accounts), and its functions can be customized via a web interface to match specific workflow requirements.
Additional functional capabilities include switch signal input (trigger via terminal interface) and output (electrical signal control, supporting max DC30V/1A or AC125V/0.5A), dynamic multicast, and external amplification support. These features enable the device to handle emergency intercom, public broadcasting, and signal linkage tasks, making it suitable for scenarios requiring quick communication responses.
Robust Protection & Easy Installation
Built for durability across harsh environments, the Bi11SV adheres to high international protection standards: it achieves IP65 water resistance and IK10 impact/vandal resistance. This robust protection allows it to operate reliably in challenging settings such as outdoor areas, industrial sites, or public spaces with high foot traffic.

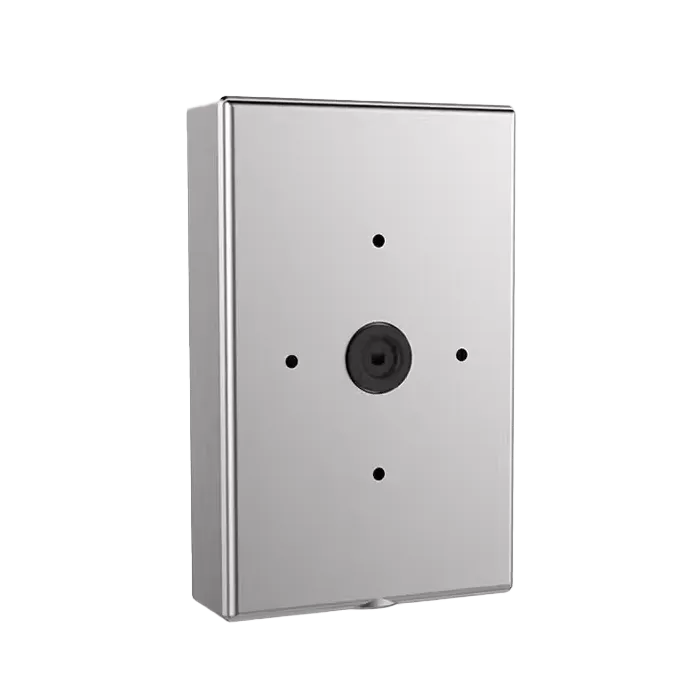

Designed for hassle-free deployment, the device uses wall-mounted installation (secured with wall screws), fitting seamlessly into various application scenarios without occupying excessive space. Its streamlined appearance and simple operation design reduce the learning curve, allowing users to get started quickly.
Easy Management & Maintenance
The Bi11SV simplifies configuration and management for administrators. The DSS key functions can be configured via a web interface, enabling quick customization based on business needs. Support for TR-069 platform access facilitates remote deployment, monitoring, and maintenance—especially valuable for organizations managing multiple devices across different locations, reducing operational and maintenance costs.
Conclusion

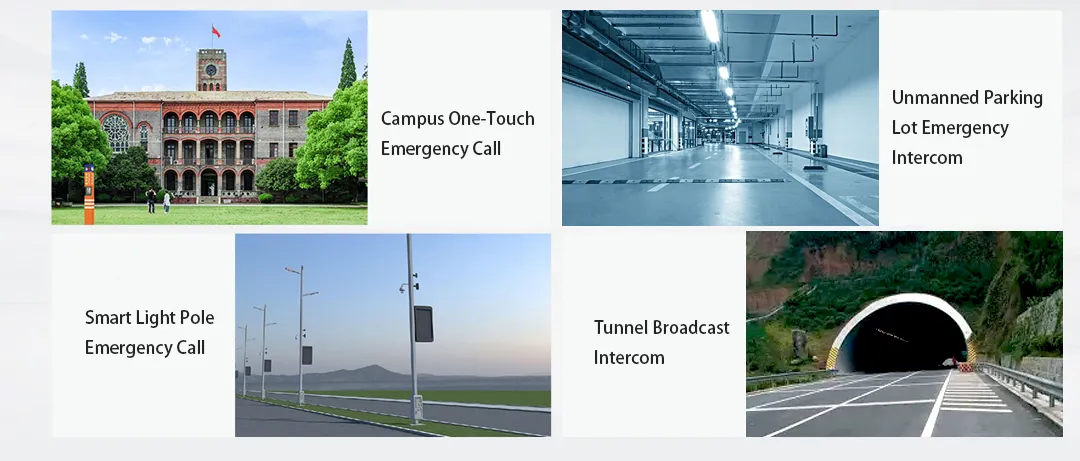

The Bi11SV is a reliable, versatile enterprise-grade visual intercom device that combines high-definition audio-video communication, flexible functionality, and industrial-grade protection. Tailored for scenarios including campus one-touch assistance, smart light poles, unmanned parking lots, and tunnel broadcast intercom, it meets the demands of efficient daily communication and emergency response. With its stable performance, broad compatibility, and robust durability, the Bi11SV serves as a practical solution to enhance communication efficiency and reliability across diverse operational environments.
