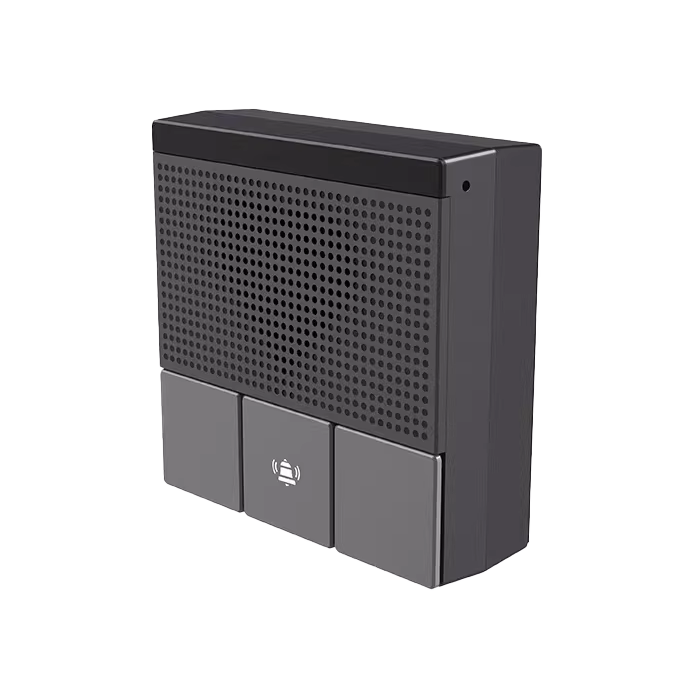

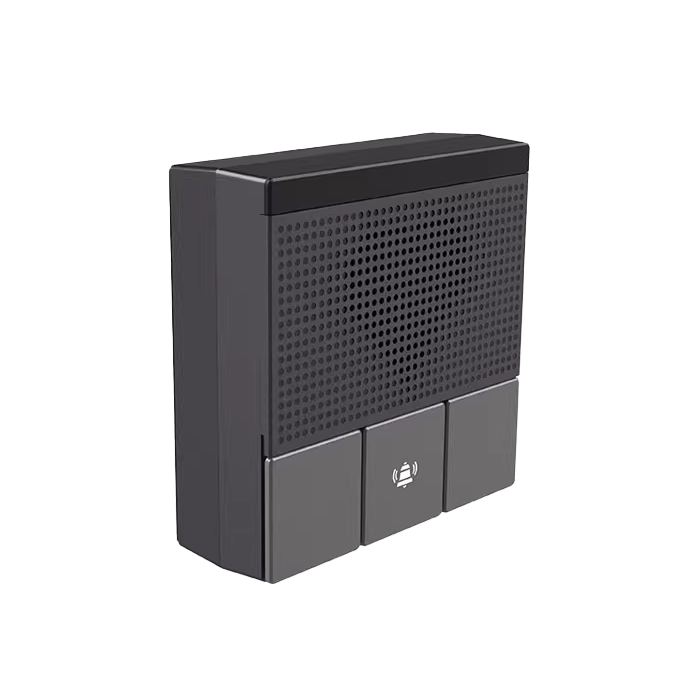

BA10

In the rapidly evolving landscape of indoor communication and security, the demand for compact, versatile, and cost-effective intercom solutions has grown exponentially. Aa renowned provider of IP communication devices, has addressed this demand with the launch of the BA10 Series SIP Mini Intercom—a product line specifically engineered to integrate intelligent security, high-quality audio intercom, and broadcasting capabilities into a single, space-saving unit. Designed exclusively for indoor scenarios, the BA10 Series stands out for its sleek design, customizable functionality, and robust performance, making it an ideal choice for offices, residential complexes, shopping malls, hospitals, schools, and hotels. This article provides a detailed, in-depth analysis of the  BA10 Series, covering its product positioning, core features, model variations, technical specifications, application scenarios, deployment capabilities, and competitive advantages.

1、Product Overview: Design Philosophy and Core Positioning

The  BA10 Series is not just a conventional intercom device—it is a streamlined solution that merges three key functions: intelligent security monitoring, real-time audio intercom, and emergency broadcasting. Its design philosophy revolves around two central principles: space efficiency and user-centric customization. Unlike bulkier intercom systems that occupy significant wall space or require complex installation, the BA10 Series boasts a "mini" form factor—compact, lightweight, and aesthetically pleasing—allowing it to blend seamlessly with any indoor decor, from modern offices to residential lobbies.
At its core, the BA10 Series is built on the SIP (Session Initiation Protocol) standard, the global benchmark for IP-based communication. This ensures compatibility with most mainstream IP PBX (Private Branch Exchange) systems, softswitches, and IMS (IP Multimedia Subsystem) platforms, such as Asterisk, Broadsoft, 3CX, Metaswitch, and Elastix. This compatibility eliminates vendor lock-in, enabling businesses and property managers to integrate the BA10 Series into their existing communication infrastructure without costly overhauls.
Another defining aspect of the BA10 Series is its cost-effectiveness. By combining three functions (security, intercom, broadcasting) into one device, it reduces the need to purchase and install separate systems—lowering both upfront procurement costs and long-term maintenance expenses. Whether deployed in small offices or large residential complexes, the BA10 Series delivers high performance at a competitive price point, making it accessible to a wide range of users.

2. Core Features: Functionality That Meets Indoor Needs

The  BA10 Series is packed with features tailored to solve common pain points in indoor communication and security. From customizable controls to HD audio and flexible networking, each feature is designed to enhance usability, reliability, and safety. Below is a detailed breakdown of its key capabilities:

2.1 Customizable Detachable Buttons: One-Touch Convenience

A standout feature of the BA10 Series is its 3 detachable, programmable function buttons—a design choice that prioritizes user convenience and scenario adaptability. Unlike fixed-function buttons that limit usability, these buttons allow users to:

• Customize icons: The button icons can be replaced manually according to specific needs. For example, in a residential complex, a button might be labeled "Call Property Management"; in a hospital, it could read "Call Nurse Station"; and in an office, it might say "Call IT Support."
• Define functions: Each button can be programmed to trigger a range of actions, including one-touch calling (to a pre-set extension or group), remote door opening (when integrated with access control systems), or emergency alerts. This eliminates the need for users to memorize extension numbers or navigate complex menus, significantly reducing response time in critical situations.
• The detachable design also simplifies maintenance: if a button becomes worn or damaged, it can be replaced individually without replacing the entire device—saving time and repair costs.

2.2 HD Audio: Crystal-Clear Communication

In intercom systems, audio quality is non-negotiable—especially in emergency scenarios where clarity can mean the difference between effective response and confusion. The BA10 Series excels in this area, offering studio-grade HD audio through a combination of advanced codecs and audio processing technologies:

• Wideband audio codecs: It supports two industry-leading wideband codecs—G.722 and Opus. G.722, a standard for HD voice, delivers a frequency range of 50 Hz to 7 kHz (far wider than narrowband codecs like G.711, which only cover 300 Hz to 3.4 kHz), resulting in natural, human-like sound. Opus, a more versatile codec, adapts dynamically to network conditions: it supports bitrates from 6 kbps to 510 kbps and frequencies up to 20 kHz, ensuring high-quality audio even in low-bandwidth environments.
• Built-in 2W speaker: The device is equipped with a 2W high-fidelity speaker that provides loud, distortion-free audio—critical for broadcasting messages across large indoor spaces (e.g., hotel lobbies, shopping mall corridors) or ensuring that calls are heard clearly in noisy environments (e.g., office break rooms, school hallways).
• Acoustic Echo Canceller (AEC): To eliminate annoying echo and background noise during calls, the BA10 Series integrates an advanced AEC algorithm. This technology detects and cancels echo caused by sound reflection (e.g., from walls or furniture) and suppresses background noise (e.g., air conditioning, foot traffic), ensuring that both parties in a call hear only the intended audio.

Complementing these features are additional audio enhancement technologies, including Voice Activity Detection (VAD), Comfort Noise Generation (CNG), Background Noise Estimation (BNE), and Packet Loss Concealment (PLC). VAD pauses audio transmission when no one is speaking, reducing network bandwidth usage; CNG generates low-level "comfort noise" during silence to avoid the awkward "dead air" effect; BNE identifies and filters out consistent background noise; and PLC compensates for lost data packets, preventing audio dropouts. Together, these technologies create a seamless, professional communication experience.

2.3 Flexible Networking: Wired and Wireless Options

The BA10 Series offers versatile networking options to adapt to different indoor environments—whether wiring is easy to install or needs to be minimized:

• Wired Ethernet: All models (BA10, BA10W, BA10-E, BA10W-E) come with a 10/100 Mbps Ethernet port, supporting stable, high-speed wired connectivity. This is ideal for environments where network reliability is paramount (e.g., security control rooms, hospital nurse stations).
• Dual-Band Wi-Fi (for BA10W/BA10W-E): The BA10W and BA10W-E models include built-in 2.4 GHz and 5 GHz Wi-Fi (compliant with 802.11 b/g/n for 2.4 GHz and 802.11 a/n for 5 GHz). This wireless capability eliminates the need for Ethernet cabling, making installation easier in spaces where drilling or running wires is impractical (e.g., historic buildings, glass-walled offices, or already furnished lobbies). The dual-band design also reduces interference: 2.4 GHz offers longer range (better for large spaces), while 5 GHz provides faster speeds and less congestion (ideal for dense Wi-Fi environments, such as apartment buildings).
• To ensure network security, the Wi-Fi functionality supports industry-standard encryption protocols: WPA, WPA2-PSK, and 802.x EAP. These protocols protect data transmission from unauthorized access, a critical consideration for devices used in security-sensitive environments (e.g., banks, government offices). Additionally, the BA10 Series supports IPv4/IPv6 dual-stack networking, ensuring compatibility with future network upgrades, as well as VPN (Virtual Private Network) options (L2TP, OpenVPN) for secure remote management.

    2.4 Reliable Power Supply: PoE and DC Options

Power supply flexibility is another key strength of the BA10 Series, ensuring it can be deployed in locations with varying power infrastructure:

• PoE (Power over Ethernet): All models support PoE (IEEE 802.3af compliant), which allows the device to receive both power and data through a single Ethernet cable. This eliminates the need for a separate power outlet, simplifying installation and reducing clutter. PoE is particularly useful for devices mounted in high locations (e.g., ceiling corners, tall walls) where accessing a power outlet would be difficult.
• 12V DC Power: For environments without PoE-enabled switches, the BA10 Series can also be powered via a 12V DC adapter (sold separately). This ensures the device can be deployed even in older buildings or spaces where PoE is not available.

2.5 IP54 Protection Rating: Dust and Water Resistance

Indoor environments can expose devices to dust, spills, or moisture (e.g., hotel kitchens, hospital restrooms, or residential entryways). The BA10 Series addresses this with an IP54 protection rating—a standard that ensures:

• Dust resistance (IP5X): The device is protected against dust ingress that could interfere with internal components. While it is not completely dust-tight, it can withstand most indoor dust conditions (e.g., from HVAC systems or foot traffic).
• Water resistance (IPX4): The device is protected against splashing water from any direction (e.g., accidental spills, cleaning sprays). This makes it suitable for use in areas where water exposure is possible but not constant (e.g., school cafeterias, office break rooms).
• This level of protection ensures the BA10 Series maintains reliable performance in a wide range of indoor environments, reducing the risk of downtime due to environmental damage.

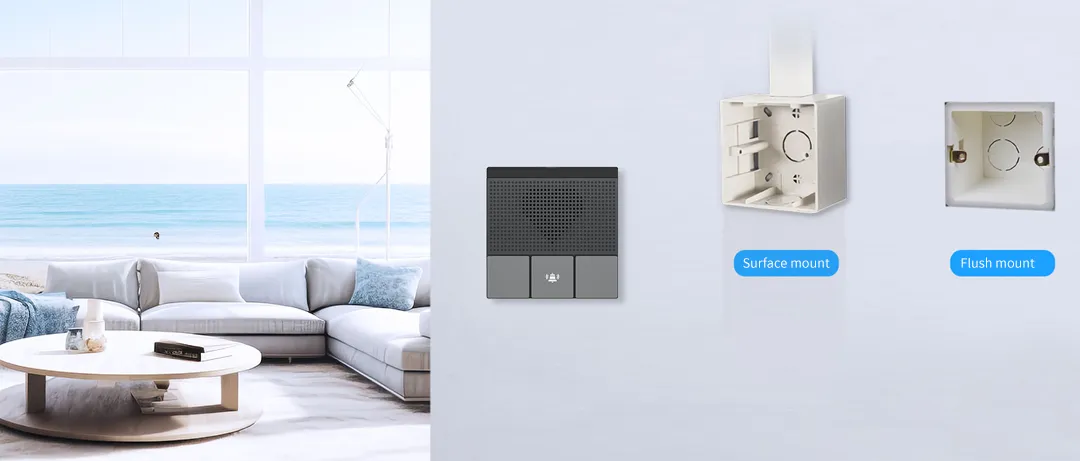

2.6 Versatile Installation: Wall-Mounted and 86-Box Embedded

To accommodate different indoor layouts and design preferences, the BA10 Series offers two installation options:

• Wall-Mounted (BA10/BA10W): The BA10 and BA10W models are designed for wall mounting. They come with all necessary hardware (brackets, screws) and a compact design that minimizes wall space usage. This is ideal for locations where surface mounting is convenient (e.g., office corridors, residential elevator lobbies).
• 86-Box Embedded (BA10-E/BA10W-E): The BA10-E and BA10W-E models are compatible with standard 86-type electrical boxes—a common fixture in most buildings (used for light switches, power outlets, etc.). Embedded installation creates a flush, seamless look that blends with the wall, making it perfect for spaces where aesthetics are a priority (e.g., luxury hotels, high-end offices, or modern apartments).

Both installation methods are simple and require only basic tools, allowing for quick deployment by maintenance staff or electricians.

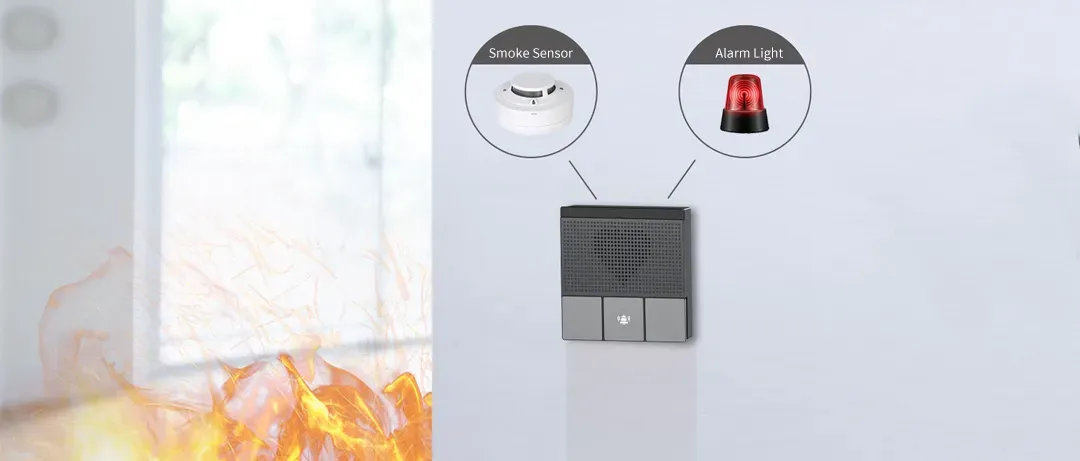

2.7 Emergency Security Integration: Short-Circuit I/O for External Devices

The BA10 Series is not just a communication device—it also serves as a hub for indoor security, thanks to its 1 built-in short-circuit input interface and 1 short-circuit output interface. These interfaces allow the device to connect to a range of external security equipment, including:
Emergency buttons: A standalone emergency button can be connected to the short-circuit input, enabling users to trigger alerts with a single press (e.g., in a school classroom, a teacher can press the button to call security).

• Sensors: Devices like smoke detectors, motion sensors, or door/window contact sensors can be linked to the input interface. If a sensor is triggered (e.g., smoke is detected), the BA10 Series can automatically send an alert to a pre-set group (e.g., property management, fire department) and activate the output interface.
•  Alarm lights/buzzers: The short-circuit output can be connected to alarm lights or buzzers. When an emergency is detected (e.g., a motion sensor is triggered), the BA10 Series can activate the alarm to warn occupants and deter intruders.

This integration turns the BA10 Series into a central component of an indoor security system, enhancing safety and enabling rapid response to emergencies.

3. Model Variations: Choosing the Right BA10 for Your Needs

The  BA10 Series consists of four models, each tailored to specific installation and networking requirements. Understanding the differences between these models is key to selecting the right device for your environment:

• BA10: This model does not support Wi-Fi and adopts a wall-mounted installation method. It is suitable for indoor spaces where Ethernet wiring is easily accessible, such as office hallways.
• BA10W: This model supports 2.4G and 5G dual-band Wi-Fi and uses a wall-mounted installation. It is ideal for indoor spaces where wiring is impractical, such as historic buildings.
• BA10-E: This model does not support Wi-Fi and uses 86-box embedded installation. It fits well in aesthetic-focused spaces like luxury hotels and modern apartments.
• BA10W-E: This model supports 2.4G and 5G dual-band Wi-Fi and adopts 86-box embedded installation. It is designed for aesthetic-focused spaces where there is no Ethernet wiring available, such as glass-walled offices.

All four models share the same core features—including 3 programmable buttons, HD audio (G.722/Opus), IP54 protection, PoE/12V DC power, and 1 short-circuit I/O interface. The only differences lie in Wi-Fi support and installation type, ensuring that there is an BA10 model for every indoor scenario.

4. Technical Specifications: Detailed Performance Metrics

To fully understand the capabilities of the  BA10 Series, it is essential to examine its technical specifications. These metrics highlight the device’s performance, compatibility, and durability, ensuring it meets the demands of indoor communication and security.

4.1 Communication Protocols and Compatibility

• SIP Lines: 2 (supports simultaneous registration to two SIP servers, ensuring redundancy and flexibility).
• SIP Version: SIP 2.0 (compliant with RFC 3261), supporting UDP/TCP/TLS transport protocols for secure communication.
• Audio Protocols: RTP (Real-time Transport Protocol), RTCP (Real-time Control Protocol), SRTP (Secure RTP) for encrypted audio transmission.
• Network Protocols: DHCP (for automatic IP configuration), PPPoE (for broadband connections), SNTP (for network time synchronization), FTP/TFTP/HTTP/HTTPS (for firmware upgrades and configuration management), TR-069 (for remote device management), LLDP (Link Layer Discovery Protocol, for network topology detection), VLAN (Virtual Local Area Network, for network segmentation).
• Compatibility: Works with mainstream IP PBX/softswitch/IMS platforms (Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya) and supports ONVIF (Open Network Video Interface Forum) for integration with IP cameras and security systems.

4.2 Audio and Video (Where Applicable)

• Audio Codecs:
  • Narrowband: G.711 a/u, G.729 ab, G.723.1, G.726, iLBC (for low-bandwidth environments).
  • Wideband: G.722 (16 kHz sampling rate), Opus (8-48 kHz sampling rate).
• Speaker: 2W, 8Ω (high-fidelity, distortion <1%).
• Microphone: Built-in omnidirectional microphone (sensitivity: -42 dB ±3 dB).
• Video Support: None (all BA10 models are audio-only; Offers video intercoms in other series, such as the A12V or i18S).

4.3 Networking and Connectivity

• Ethernet: 1 x 10/100 Mbps RJ45 port (auto-MDI/MDI-X).
• Wi-Fi (BA10W/BA10W-E): 2.4 GHz (802.11 b/g/n) and 5 GHz (802.11 a/n); maximum data rate: 300 Mbps (5 GHz), 150 Mbps (2.4 GHz).
• IP Modes: IPv4, IPv6, or dual-stack (IPv4 & IPv6).
• Wi-Fi Encryption: WPA, WPA2-PSK, 802.x EAP (PEAP, TLS, TTLS).
• VPN Support: L2TP (Layer 2 Tunneling Protocol), OpenVPN (for secure remote access).

4.4 Power and Environmental Ratings

• Power Supply:
  • PoE: IEEE 802.3af compliant (48V DC, 0.3A max).
  • DC Input: 12V DC, 1A (external adapter, sold separately).
• Protection Rating: IP54 (dust and splash water resistance).
• Operating Temperature: -10℃ ~ 50℃ (suitable for most indoor environments, including unheated lobbies or air-conditioned offices).
• Storage Temperature: -20℃ ~ 60℃.
• Humidity: 10% ~ 90% (non-condensing).

4.5 Physical Dimensions and Installation

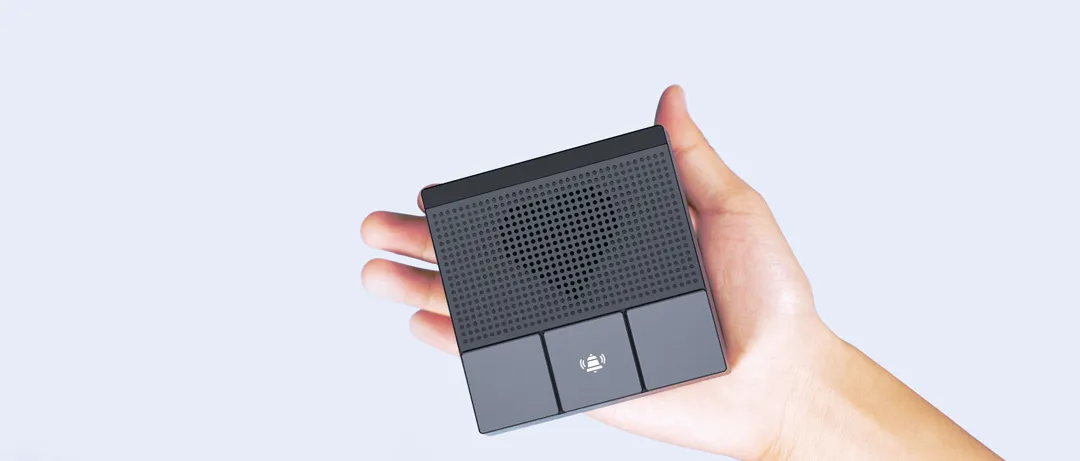

• Dimensions (BA10/BA10W): 86 mm x 86 mm x 35 mm (W x H x D) – compact enough to fit in small wall spaces.
• Dimensions (BA10-E/BA10W-E): 86 mm x 86 mm x 25 mm (W x H x D) – slim design for 86-box embedding.
• Weight: ~150g (all models, excluding mounting hardware).
• Mounting Hardware: Included (wall brackets for BA10/BA10W; 86-box adapter for BA10-E/BA10W-E).

4.6 Additional I/O and Controls

• Short-Circuit Interfaces: 1 x input, 1 x output (max load: DC 30V/1A, AC 125V/0.5A).
• LED Indicators: 1 x status LED (red: fast flash = registration failure/network error; green: slow flash = active call; solid green = normal operation).
• Buttons: 3 detachable programmable buttons (with customizable icons).

5. Application Scenarios: How the BA10 Series Enhances Indoor Environments

The versatility of the  BA10 Series makes it suitable for a wide range of indoor applications. Below are some of the most common use cases, highlighting how the device addresses specific needs in each scenario:

5.1 Office Buildings

In office buildings, the BA10 Series can be deployed in:

• Corridors and elevator lobbies: Wall-mounted BA10W models (using Wi-Fi) allow employees to call reception, IT support, or security with a single button.
• Meeting rooms: Embedded BA10-E models can be used to call administrative staff for assistance (e.g., AV support, catering) without disrupting meetings.
• Server rooms: BA10 models connected to motion sensors can trigger alerts if unauthorized access is detected, enhancing physical security for critical IT infrastructure.

5.2 Residential Complexes

For residential buildings, the BA10 Series is ideal for:

• Unit entryways: Embedded BA10W-E models (Wi-Fi-enabled) allow residents to call property management or emergency services. The short-circuit output can be linked to door locks, enabling remote unlocking for guests.
• Common areas (gyms, lounges): Wall-mounted BA10 models connected to smoke detectors can activate alarms and broadcast evacuation instructions in case of fire.
• Senior living facilities: Large, customizable buttons (labeled "Call Nurse" or "Emergency") make the BA10 Series easy to use for elderly residents, ensuring they can get help quickly.

5.3 Hospitals and Healthcare Facilities

In healthcare settings, the BA10 Series enhances patient safety and staff efficiency:

• Patient rooms: Embedded BA10-E models allow patients to call nurses with a single press, replacing traditional nurse call systems that require wiring. The HD audio ensures clear communication, even if patients are hard of hearing.
• Pharmacies and labs: BA10 models connected to temperature sensors can alert staff if temperatures exceed safe levels (e.g., for medication storage), preventing spoilage.
• Waiting areas: Wall-mounted BA10W models can broadcast appointment reminders or emergency announcements, reducing staff workload.

5.4 Shopping Malls and Retail Stores

For retail environments, the BA10 Series improves staff coordination and customer service:

• Store backrooms: BA10 models allow staff to call cashiers or stockrooms for assistance (e.g., restocking shelves).
• Customer service desks: BA10W models (Wi-Fi-enabled) can be moved to temporary locations (e.g., during sales events) to provide on-the-spot support.
• Parking garages: BA10 models connected to panic buttons enable customers to call security in case of theft or harassment.

5.5 Schools and Educational Institutions

In schools, the BA10 Series supports safety and communication:

• Classrooms: Embedded BA10-E models allow teachers to call administrators or security in case of discipline issues or emergencies.
• Cafeterias and gyms: Wall-mounted BA10 models can broadcast bell schedules, assembly announcements, or emergency alerts (e.g., lockdowns).
• Libraries: BA10 models with quiet audio settings enable staff to call colleagues without disturbing students.

6. Deployment and Maintenance: Easy to Install, Simple to Manage

One of the key advantages of the  BA10 Series is its ease of deployment and maintenance—critical for organizations with limited IT or maintenance staff. Below is an overview of its deployment and management capabilities:

6.1 Automated Deployment

The BA10 Series supports multiple automated deployment methods, eliminating the need for manual configuration of each device:

• DHCP Opt 66: A DHCP server can be configured to send the URL of a configuration server (FTP/TFTP/HTTP) to the BA10 Series when it boots up. The device then downloads its configuration automatically.
• SIP PNP (Plug-and-Play): When connected to a SIP server that supports PNP, the BA10 Series automatically registers and retrieves settings, requiring no user input.
• TR-069: This protocol enables remote management of the BA10 Series via a TR-069 server. IT staff can configure, monitor, and update devices from a central location, even if they are deployed across multiple sites.

• FTP/TFTP/HTTP/HTTPS: Configuration files can be uploaded to a server, and the BA10 Series can download them during boot-up. This is ideal for organizations that prefer to manage configurations manually.

6.2 Web-Based Management

All BA10 models include a web-based management portal that allows administrators to:

• Configure settings: Adjust audio parameters (volume, codecs), network settings (IP address, Wi-Fi), button functions, and security settings (encryption, VPN).
• Monitor device status: View real-time information about network connectivity, call history, and sensor inputs (e.g., whether a panic button has been pressed).
• Export/import configurations: Save configurations to a file for backup or to replicate settings across multiple devices (e.g., for a chain of stores).
• Upgrade firmware: Download and install the latest firmware to access new features, fix bugs, or improve security.

The web portal has a user-friendly interface, requiring no advanced technical knowledge—making it accessible to maintenance staff or property managers.

6.3 Troubleshooting and Support

Provides comprehensive support for the BA10 Series, including:

• Status LEDs: The LED indicator provides quick visual feedback about device health (e.g., red fast flash = network error), enabling staff to identify issues at a glance.
• Syslog: The BA10 Series logs events (calls, errors, configuration changes) to a syslog server, allowing administrators to troubleshoot problems by reviewing historical data.
• Packet Dump: The web portal allows administrators to capture network packets, which can be analyzed to resolve connectivity or audio quality issues.
• Technical Documentation: Offers detailed user manuals, datasheets, and firmware release notes on its website. Additionally, its customer support team provides assistance via email, phone, or live chat.

7. Competitive Advantages: Why Choose the  BA10 Series?

In a market saturated with intercom devices, the BA10 Series stands out for several key reasons:

7.1 All-in-One Functionality

Unlike basic intercoms that only support audio calls, the BA10 Series integrates security (sensor integration, alarm triggers), communication (HD audio intercom), and broadcasting—eliminating the need for separate systems. This reduces costs and simplifies management.

7.2 Customization

The 3 detachable, programmable buttons and customizable icons make the BA10 Series adaptable to any scenario. Whether you need to call a specific extension, unlock a door, or trigger an alarm, the buttons can be tailored to your exact needs.

7.3 Flexibility

With two installation options (wall-mounted/86-box embedded) and two networking options (wired/Wi-Fi), the BA10 Series can be deployed in almost any indoor environment—from historic buildings with no wiring to modern offices with strict aesthetic requirements.

7.4 Reliability

The IP54 protection rating, PoE support, and advanced audio processing technologies ensure the BA10 Series delivers consistent performance in harsh indoor conditions (dust, moisture, noise) and unreliable networks.

7.5 Compatibility

Support for SIP, ONVIF, and mainstream IP PBX platforms ensures the BA10 Series can be integrated into existing infrastructure, avoiding the need for costly replacements.

7.6 Cost-Effectiveness

By combining three functions into one device, the BA10 Series offers a lower total cost of ownership (TCO) than purchasing separate security, intercom, and broadcasting systems. The automated deployment and easy maintenance further reduce long-term costs.

8. Conclusion

The  BA10 Series SIP Mini Intercom is a game-changer for indoor communication and security. Its compact design, customizable functionality, HD audio, flexible networking, and robust performance make it suitable for a wide range of applications—from offices and residential complexes to hospitals and schools. By integrating three key functions (security, intercom, broadcasting) into a single device, the BA10 Series reduces costs, simplifies deployment, and enhances safety.
Whether you need a Wi-Fi-enabled model for a historic building, an embedded model for a luxury hotel, or a basic wall-mounted model for an office corridor, the BA10 Series has a variant to meet your needs. Its compatibility with mainstream communication platforms and automated management capabilities ensure it can grow with your organization, making it a smart, long-term investment.
For businesses, property managers, and institutions looking for a reliable, cost-effective intercom solution that prioritizes user experience and security, the  BA10 Series is an excellent choice. It proves that good things do come in small packages—delivering big value in a compact, powerful device.
